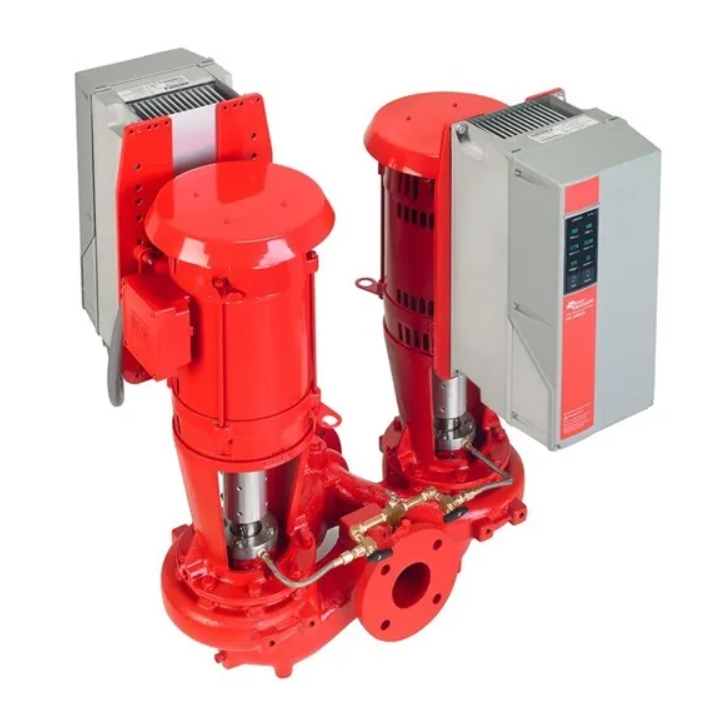

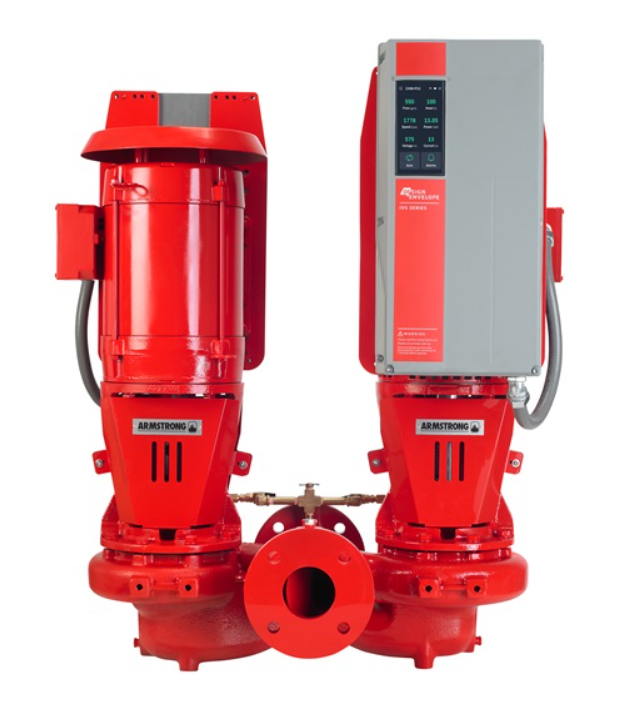

Armstrong Design Envelope 4312 Intelligent Vertical In-Line Twin Pumps

The Armstrong Design Envelope 4312 Twin Pump is the ultimate solution for large-scale operations in Bangladesh where system downtime is absolutely not an option. In traditional mechanical setups, achieving system redundancy means buying, piping, and wiring two completely separate single pumps alongside a complex web of check valves, manifolds, and extra isolation valves. The Armstrong 4312 replaces this bulky, expensive arrangement by integrating two complete motor-pump units inside one compact casing. This unique engineering approach slashes your physical piping requirements and allows the system to operate as a duty/standby pair (giving you 100% emergency backup) or in parallel to tackle peak heating and cooling loads.

Built to survive tough operating conditions, the rugged casing is forged from high-tensile cast iron or ductile iron. Internally, the pump utilizes custom-balanced cast iron or bronze impellers coupled with inside single-spring sintered silicon carbide mechanical seals that easily handle fluid temperatures up to 250°F (121°C). Because it features a Vertical In-Line (VIL) configuration, the pump mounts directly into the main piping grid like a valve. This saves up to 60% floor space compared to traditional horizontal base-mounted setups and eliminates the need for expensive concrete inertia bases, flexible pipe connectors, or heavy housekeeping pads. Maintenance is simple and non-disruptive: if one side needs servicing, the mechanical flap valve isolates that chamber automatically, allowing technicians to work on that pump head while the other continues running seamlessly.

The real intelligence of the 4312 series lies in its dual on-board variable speed controllers. Thanks to advanced Sensorless Control, the integrated drives continuously measure motor speed and power usage. By instantly matching these metrics against factory-mapped hydraulic performance curves, the system calculates real-time flow and head requirements without needing any fragile, externally wired differential pressure sensors. This translates directly to up to 75% energy savings over traditional constant-speed configurations. Furthermore, the 4312 holds OSHPD Special Seismic Certification Pre-approval, certifying its structural durability for critical infrastructure installations subject to strict structural safety standards.

Key Technical Highlight Matrix

Core Benefits & Financial Value Equations

1. Lowest Installed Cost (Upfront Capital Savings)

• Two Pumps, One Casing: The dual-head twin layout sharply cuts down on the footprint, valves, and extra piping required for a traditional two-pump layout.

• Eliminates Structural Accessories: No concrete inertia bases, heavy housekeeping pads, or flexible expansion joints are required, saving major structural and masonry installation labor costs.

• Zero Sensor Wiring Costs: Embedded sensorless logic means you completely skip the procurement, mounting, and wiring costs of physical differential pressure sensors across your facility.

2. Lowest Operating Cost (Monthly Utility Savings)

• Up to 75% Electricity Reductions: Perfect component matching combined with automated variable-speed tuning ensures the motors consume only the exact power required by real-time building loads.

• Shorter Pipe Runs: Vertically mounting directly into the line minimizes bends and pipe lengths inside your mechanical rooms, lowering system friction and reducing overall pumping wear.

3. Lowest Project and Operating Risk

• 100% Emergency Redundancy: If one pump requires scheduled maintenance or experiences an unexpected fault, the second pump immediately takes over, keeping your facility running smoothly.

• Single-Source Accountability: Both pumps, the casing, and the intelligent controllers come pre-assembled from a single manufacturer, avoiding compatibility issues or finger-pointing during installation.

Strategic Importance Across Bangladesh

1. Modern Hospitals, Data Centers & Pharmaceuticals

For mission-critical facilities like modern multi-specialty hospitals, commercial data banks, and sterile pharmaceutical manufacturing lines across Dhaka and Chittagong, cooling failure is a catastrophic risk.

• Non-Stop 24/7 Cooling Security: The integrated twin-pump layout ensures full backup protection. If one motor is down for routine servicing, the standby pump continues supplying chilled water to critical areas with zero system disruption.

• Seismic and Structural Safety: The certified OSHPD structural pre-approval ensures the pump system complies with national safety frameworks for high-importance public architecture.

2. Green Garments (RMG), Commercial Towers & High-Rises

For export-focused LEED-certified apparel factories, massive corporate headquarters, and high-density real estate developments, minimizing energy waste is vital for compliance and profitability.

• Passes Strict Global Green Audits: The massive 75% reduction in pumping energy helps factories satisfy international buyers and earn maximum points under USGBC LEED or similar carbon reduction audits.

• Maximizes Premium Floor Space: Merging two industrial pumps into a single vertical footprint frees up valuable mechanical room square footage for production lines or utility storage.

Why Buy From Bhai Bhai Engineering?

Procuring, aligning, and calibrating an advanced intelligent twin-pumping system demands an authorized, engineering-focused supplier. Bhai Bhai Engineering is your trusted technology partner in Bangladesh:

• 100% Authentic OEM Imports: We source directly from genuine Armstrong Fluid Technology supply lines, delivering brand-new equipment complete with verified serial numbers and original factory test reports.

• Full Hydronic Engineering Expertise: From initial flow calculations and pipe-load matching to VFD programming and Building Automation System (BAS) integration, our local team handles everything.

• Transparent Local BDT Pricing: We provide professional commercial quotes in Bangladeshi Taka (BDT) with no hidden fees, simplifying corporate or institutional procurement reviews.

• Dedicated Local Spare Parts Stock: We maintain original replacement seals, control modules, and mechanical components locally to safeguard your facility against extended downtime.

Contact Us for a Quotation

Protect your facility's cooling infrastructure with built-in redundancy and market-leading energy efficiency. Get in touch with our specialized industrial engineering desk in Dhaka today for a detailed technical proposal and commercial quote customized for your project's flow requirements.

• Corporate Headquarters: Podirdia, Khilbarirtek, Vatara, Dhaka-1212. (Nur-E-Madina Mosjid Complex)

• Sales & Project WhatsApp: +8801722039029

• Corporate Mailbox: bhaibhaiengineering51@gmail.com

• Engineering Portal: bhaibhaiengineering.com

Frequently Asked Questions (FAQs)

Q1: Do both motors on the Armstrong 4312 pump run at the same time?

Ans: They can be configured based on your needs. Typically, they operate in a duty/standby configuration where one pump handles 100% of the load and the other acts as a backup. However, they can also be programmed to run in parallel mode, where both motors run together to meet peak system demands.

Q2: How does the twin design handle isolating a pump for repairs without leaking water?

Ans: The Armstrong 4312 features a built-in internal mechanical isolation flap valve. When one pump head is removed or shut down for routine servicing, the fluid pressure automatically pushes the flap valve closed to seal off that chamber, allowing the other pump head to keep running without draining the building's pipes.

Q3: What does the OSHPD pre-approval mean for my project?

Ans: OSHPD pre-approval means the pump system has undergone rigorous seismic testing and is certified to remain structurally sound and functional during seismic events. This makes it perfect for high-compliance projects like hospitals and government infrastructure.

Q4: Can this pump integrate with my factory’s central Building Automation System (BAS)?

Ans: Yes. The integrated controllers on the Armstrong 4312 are fully network-capable right out of the box, supporting easy communication with standard Building Automation Systems (BAS) or modern smart energy platforms for remote monitoring.
