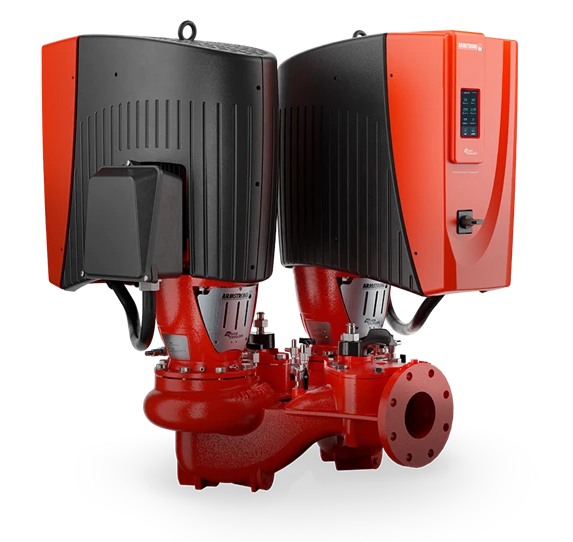

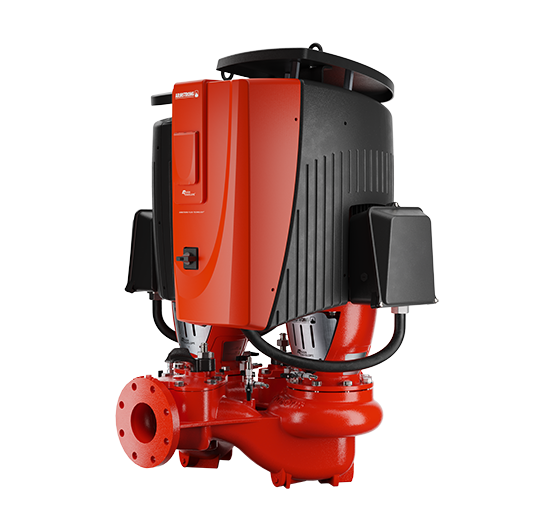

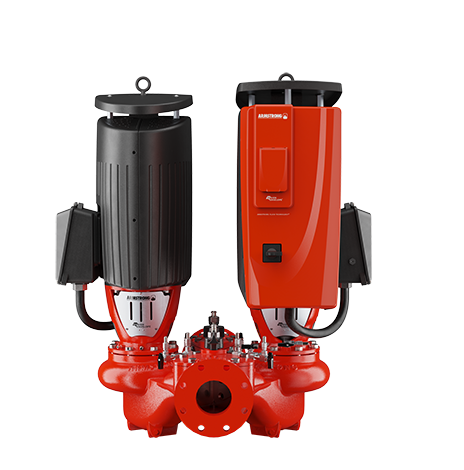

Armstrong Design Envelope 4332 Tango Intelligent Dual Vertical In-Line Pumps

The Armstrong Design Envelope 4332 Tango Pump represents a major shift in large-scale fluid dynamics and central chiller plant automation for modern commercial and industrial projects in Bangladesh. In conventional high-flow mechanical designs (up to 2,000 USgpm), providing necessary system backup required installing two massive, separate single-pumps side by side. That traditional layout demanded concrete inertia foundations, separate check valves, heavy external manifold piping, and a large mechanical room footprint. The Armstrong 4332 Tango completely alters this dynamic by housing two complete high-capacity motor-pump assemblies inside a single compact casing, connecting cleanly into a single run of pipe.

The underlying operational intelligence of the 4332 Tango series is powered by Armstrong's proprietary Parallel Sensorless Control. While traditional dual-pump configurations require physical differential pressure sensors to be wired far down the building's piping grid, the Tango handles everything internally. Its on-board VFD microprocessors continuously track the motor’s precise electrical signatures, matching RPM and power draw against factory-loaded hydraulic curves. If building cooling loads surge during hot summer afternoons, the pump automatically stages both motors to run together at lower, highly efficient speeds rather than pushing a single pump to its mechanical limit. This smart sharing layout delivers up to 75% energy savings over traditional constant-speed systems.

To survive the high humidity, temperature swings, and chemical exposure typical of industrial zones like Gazipur, Narayanganj, and Chittagong, the pump casing is constructed from rugged, e-coated cast iron. The internal fluid paths are driven by 316 stainless steel impellers paired with premium sintered silicon carbide mechanical seals. To make servicing as seamless as possible, the 4332 framework is equipped with integrated isolation valves on both the suction and discharge lines. Combined with heavy-duty overhead lifting eyes, a single pump end can be unbolted and lifted away for maintenance while the opposite motor module stays fully operational—ensuring your factory or cleanroom faces zero operational downtime.

Key Technical Highlight Matrix

Core Benefits & Financial Value Equations

1. Lowest Installed Cost (Capital Expenditure Relief)

• Eliminates Massive Pipe Risers & Trim: Because both impellers utilize a single dual-volute casing shell, you save significantly on extra manifold piping, separate check valves, and isolation trim.

• Zero Foundation Costs: The vertical in-line architecture mounts directly into the pipe grid like a valve. This completely removes the need to pour heavy concrete inertia bases or install flexible pipe connectors.

• No VFD or External Sensor Costs: The variable speed drives are mounted on-board at the factory, eliminating the separate procurement, wiring, and calibration costs of remote differential pressure sensors.

2. Lowest Operating Cost (Operational Expenditure Relief)

• IE5 Ultra-Premium Efficiency Savings: The inclusion of IE5 permanent magnet motors lowers energy losses by more than 20% compared to standard NEMA Premium motors, providing exceptional efficiency even in high turndown applications.

• Best-Efficiency Staging Optimization: The smart on-board controller automatically distributes the building load across both pumps at partial speeds when efficient, maximizing power savings.

3. Lowest Environmental & Maintenance Risk

• Up to 85% Less Embodied Carbon: By downscaling the overall equipment footprint and completely eliminating heavy concrete foundations and extra piping, the system reduces upfront construction carbon by up to 85%.

• Zero-Downtime Serviceability: Built-in isolation suction/discharge valves let technicians work on one motor block safely while the secondary pump module handles the building's active cooling requirements.

Strategic Importance Across Bangladesh

1. Government Infrastructure, Public Power Plants & Secure Tech Hubs

State properties—including central administrative secretariats, public sector medical universities, and national data banks—require high-capacity fluid loops paired with rock-solid equipment backup.

• Maximizes Tight Mechanical Footprints: Shifting from two large separate single-pumps to one integrated Tango unit saves up to 60% floor space, freeing up valuable mechanical room real estate.

• Reduces Grid Current Surges: The smart soft-starting logic of the integrated IE5 variable-speed controllers eliminates high current spikes upon startup, protecting local grid transformers from sudden voltage drops.

2. Private Sector Garments (RMG), Green Textile Mills & Processing Plants

For Bangladesh's export-oriented Ready-Made Garment (RMG) factories, eco-certified spinning mills, and pharmaceutical cleanrooms, maximizing operational efficiency is vital for global cost competitiveness.

• Aids Global Green Building Compliance: International buyers prioritize purchasing from highly efficient, green-certified factories. The massive energy reductions provided by the Tango 4332 help facilities score maximum points on international green frameworks (such as LEED).

• Active Performance Management: Built-in self-diagnostic capabilities and optional internet cloud connectivity provide early warnings, trend analysis, and automated performance logs, protecting your manufacturing line from unexpected breakdowns.

Why Buy From Bhai Bhai Engineering?

Procuring, piping, and calibrating a high-capacity, IE5 dual parallel-pumping system requires an experienced engineering partner. Bhai Bhai Engineering delivers professional end-to-end support across Bangladesh:

• Verified Authentic OEM Import Guarantee: We source directly through authorized global Armstrong Fluid Technology networks, supplying 100% brand-new equipment complete with verified serial numbers and original factory warranties.

• Turnkey Engineering & Piping Integration: Our dedicated local engineering crew handles the entire project—from structural pipe stress analysis and mechanical rigging to precision water loop balancing and BAS automation integration.

• Transparent Local BDT Project Quotes: Avoid unexpected currency shifts or hidden import fees. We offer transparent commercial quotes in Bangladeshi Taka (BDT) structured for corporate boards or government procurement reviews.

• Quick Local Spare Parts Access: We maintain local stocks of original outside balanced seals, IE5 motor parts, and replacement modules to protect your business from costly operational downtime.

Contact Us for a Quotation

Optimize your facility's high-flow fluid network and maximize energy savings with Armstrong 4332 Tango IE5 dual intelligent pumping technology. Contact our specialized industrial sales engineering desk in Dhaka today to receive a detailed commercial proposal and technical product data sheets tailored to your project's specific flow requirements.

• Corporate Headquarters: Podirdia, Khilbarirtek, Vatera, Dhaka-1212. (Nur-E-Madina Mosjid Complex)

• Sales & Project WhatsApp: +8801722039029

• Corporate Mailbox: bhaibhaiengineering51@gmail.com

• Engineering Portal: https://www.bhaibhaiengineering.com/

Frequently Asked Questions (FAQs)

Q1: What is the main operational advantage of the 4332 Tango model compared to the smaller 4322 model?

Ans: The 4332 series is engineered for much larger industrial and commercial flows. It features high-capacity 4” (100 mm) port sizing and handles massive parallel flows up to 2,000 USgpm and up to 200 feet of head, utilizing larger 15 hp to 50 hp motors. It also comes standard with Ultra-Premium Efficiency (IE5) motors for greater energy savings.

Q2: How can the pump run safely if one side is unbolted for maintenance?

Ans: The 4332 Tango features integrated isolation valves directly inside the casing on both the suction and discharge paths. When a technician closes these valves for one side, that specific pump cavity is mechanically isolated from the active water stream. This allows you to safely unbolt and lift that pump head out using the integrated overhead lifting eyes while the second motor continues to run normally for the building.

Q3: What does "IE5 Ultra-Premium Efficiency" mean for my factory's electricity bill?

Ans: IE5 is the highest efficiency class currently available for electric motors globally. These permanent magnet motors reduce internal energy losses by more than 20% compared to traditional NEMA Premium (IE4) motors. In high-capacity, round-the-clock factory environments in Bangladesh, this translates into a noticeable reduction in monthly utility bills.

Q4: Do we need to purchase or install a separate wall-mounted VFD panel for this pump?

Ans: No. The Armstrong Design Envelope 4332 Tango comes with integrated, on-board intelligent variable speed controls pre-mounted and pre-tuned directly on top of each motor at the factory. This completely removes the installation, wiring, and panel-space costs associated with traditional wall-mounted variable frequency drives.
