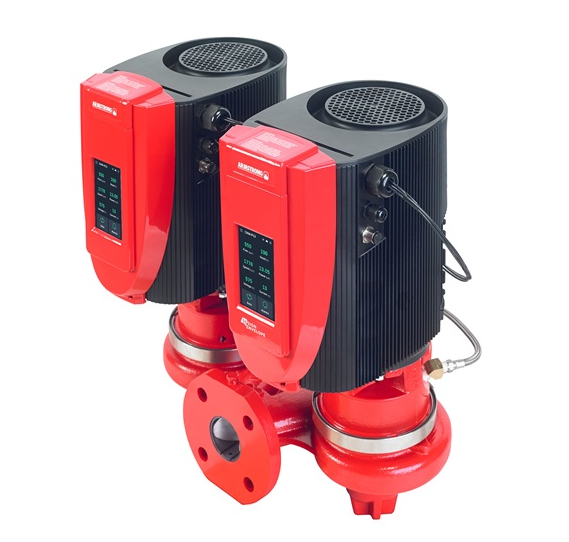

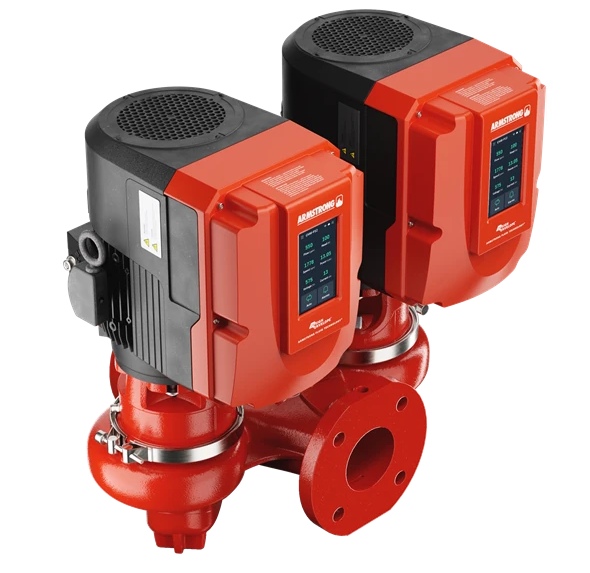

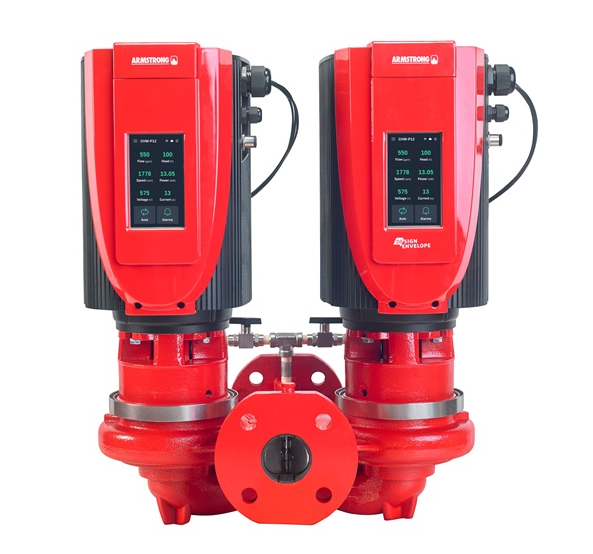

Armstrong Design Envelope 4372 Tango Intelligent Dual Vertical In-Line Pumps

The Armstrong Design Envelope 4372 Tango Pump represents a major leap forward in mechanical room design, fluid dynamics, and automated infrastructure safety. In conventional engineering layouts across Bangladesh, achieving system backup required installing two entirely separate single-pumps side by side. This setup demanded expensive external pipe branch connections, separate check valves, independent wall-mounted variable frequency drives (VFDs), and a massive amount of floor space. The Armstrong 4372 Tango completely eliminates this complexity by housing two complete pump-motor assemblies inside one compact casing shell, allowing it to connect directly into a single run of pipe.

The operational intelligence of the Tango 4372 is powered by Armstrong's patent-pending Parallel Sensorless Control. Traditional twin-pump setups depend on physical pressure sensors placed down the pipeline to coordinate staging. These sensors require extensive wiring and frequent recalibration. The Tango series bypasses this vulnerability completely: its built-in controls continuously map real-time power draw and motor RPM against internal hydraulic charts. If building cooling loads surge, the on-board microprocessors automatically stage both pumps to run together at lower, highly efficient speeds rather than forcing a single pump to work at its absolute limit. This smart coordination delivers up to 75% energy savings compared to traditional constant-speed configurations.

Built to withstand demanding commercial and industrial fluid loops, the core casing is crafted from e-coated ductile iron to prevent internal rust and scaling. The internal rotating components feature dual stainless steel impellers paired with long-life sintered silicon carbide mechanical seals. Thanks to the advanced integrated controls design, if one side of the pump ever needs routine seal replacement, maintenance crews can service that specific cartridge cleanly without unmounting the main casing from the building's main water pipes—keeping your building's fluid loop active without interruption.

Key Technical Highlight Matrix

Core Benefits & Financial Value Equations

1. Lowest Installed Cost (Capital Expenditure Relief)

• Eliminates External Pipe Branches: Because both impellers sit inside a single integrated casing, you completely eliminate the need for expensive external manifold piping, isolating valves, and dual check valves.

• Zero Concrete Foundations Needed: The vertical in-line architecture hooks straight into the pipe grid, removing the need for costly concrete inertia blocks, housekeeping pads, and flexible pipe connectors.

• No VFD or Sensor Procurement Fees: The variable speed drives and sensorless control algorithms are integrated directly on-board at the factory, saving you the expense of buying, wiring, and calibrating separate field sensors.

2. Lowest Operating Cost (Operational Expenditure Relief)

• Best-Efficiency Staging Savings: Rather than running one pump at full throttle, the parallel sensorless system shares the load across both impellers at lower speeds when efficient, maximizing power savings.

• Shorter Pipe Friction Reductions: The unified, space-saving layout shortens necessary pipe runs within the mechanical room, lowering fluid friction losses and further reducing daily electricity draw.

3. Lowest Environmental & Project Risk Cost

• Direct Greenhouse Gas Reduction: Cutting power consumption by 75% reduces your facility's operational carbon footprint at an identical ratio, helping you meet strict international green building codes.

• Smart Building Network Capability: Built-in communication protocols interface seamlessly with centralized Building Automation Systems (BAS), while optional internet cloud connectivity provides early warnings and automated performance reports.

Strategic Importance Across Bangladesh

1. Government Institutes, Public Infrastructure & Medical Centers

State properties—including public sector hospital surgical wings, government data bank centers, and centralized office secretariats—require compact design footprints and reliable equipment backup.

• Saves Premium Spatial Area: Government facilities frequently operate tight mechanical footprints. Shifting from two separate standby pumps to one unified Tango unit reduces the required floor space by up to 60%.

• Guaranteed Cooling Redundancy: Critical facilities like operating rooms or server hubs cannot afford a pump failure. The dual-motor configuration ensures backup cooling is always online.

2. Private Sector Garments (RMG), Eco Textile Mills & Real Estate

For Bangladesh's export-oriented Ready-Made Garment (RMG) factories, green LEED-certified spinning mills, and corporate office complexes, maximizing energy savings is crucial for operational profitability.

• Aids Global Green Building Compliance: International buyers prioritize purchasing from highly efficient, green-certified factories. The 75% energy reduction provided by the Tango 4372 helps facilities achieve top-tier LEED validation points.

• Minimized Project Risk: The combination of single-source responsibility, long-life silicon carbide seals, and optional sediment filters ensures your industrial process loops and cooling networks run continuously without unexpected breakdowns.

Why Buy From Bhai Bhai Engineering?

Procuring and commissioning an intelligent dual parallel-pumping system requires a highly technical HVAC engineering partner. Bhai Bhai Engineering delivers professional end-to-end support across Bangladesh:

• Verified Authentic OEM Imports: We import directly from authorized global Armstrong Fluid Technology networks, supplying 100% brand-new equipment complete with verified factory certificates and clear serial numbers.

• Turnkey Hydronic Engineering Support: Our experienced local engineering team manages the complete project layout—from pipe stress analysis and mechanical installation to variable speed calibration and BAS integration.

• Transparent Local BDT Project Quotes: Avoid unexpected currency shifts or hidden import fees. We offer transparent commercial quotes in Bangladeshi Taka (BDT) structured for corporate boards or government procurement reviews.

• Quick Local Spare Parts Access: We maintain local stocks of original seals, motor components, and replacement modules to protect your business from costly operational downtime.

Contact Us for a Quotation

Optimize your facility's fluid loop reliability and maximize energy savings with Armstrong Tango dual intelligent pumping technology. Contact our specialized industrial sales engineering desk in Dhaka today to receive a detailed commercial proposal and technical product data sheets tailored to your project's specific flow requirements.

• Corporate Headquarters: Podirdia, Khilbarirtek, Vatara, Dhaka-1212. (Nur-E-Madina Mosjid Complex)

• Sales & Project WhatsApp: +8801722039029

• Corporate Mailbox: bhaibhaiengineering51@gmail.com

• Engineering Portal: bhaibhaiengineering.com

Frequently Asked Questions (FAQs)

Q1: What is the main operational difference between the Tango 4372 and traditional twin pumps?

Ans: Traditional twin pumps require two separate pipe installations, two concrete pads, and two distinct wall-mounted VFD panels with external pressure sensors. The Armstrong 4372 Tango integrates two separate motors and impellers into one single casing shell that connects directly into your existing pipe run, using built-in sensorless programming to manage flow automatically.

Q2: What happens if one of the two motors inside the Tango pump fails?

Ans: The system has built-in 100% automatic redundancy. If one motor or drive encounters an issue, the integrated smart panel immediately flags an alert and shifts the full operating load to the secondary motor module, ensuring your facility's cooling loop continues to run smoothly without interruption.

Q3: Does the Armstrong 4372 Tango pump require concrete inertia pads for installation?

Ans: No. One of the main advantages of the Tango pump is that its vertical in-line configuration allows it to be mounted directly within the pipeline like a valve. This completely removes the need to pour heavy concrete foundations or install flexible pipe connectors, significantly lowering your upfront installation costs.

Q4: Can we connect this pump to our factory's Central Building Automation System (BAS)?

Ans: Yes. The Armstrong 4372 controller is fully network-capable and designed to interface seamlessly with all standard Building Automation Systems (BAS) for centralized remote monitoring, and it can connect to the internet for advanced performance cloud tracking.
