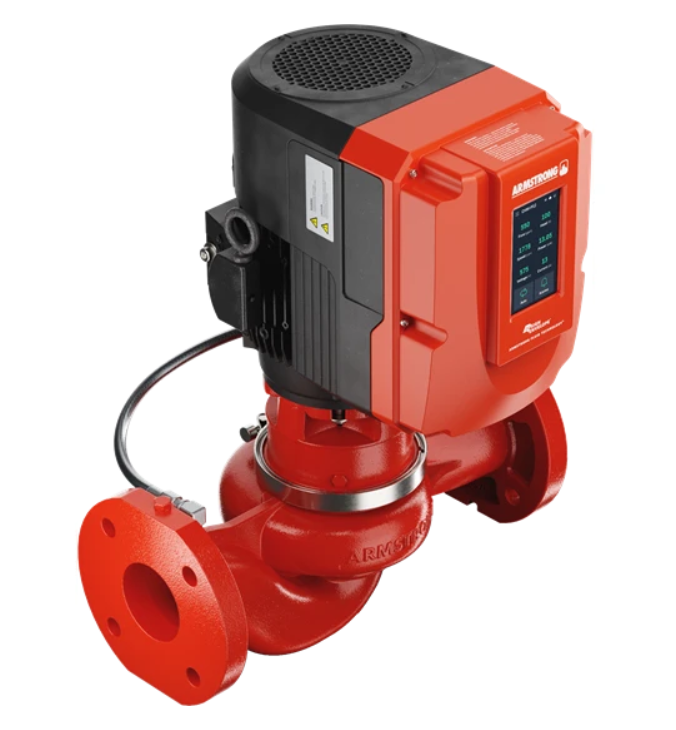

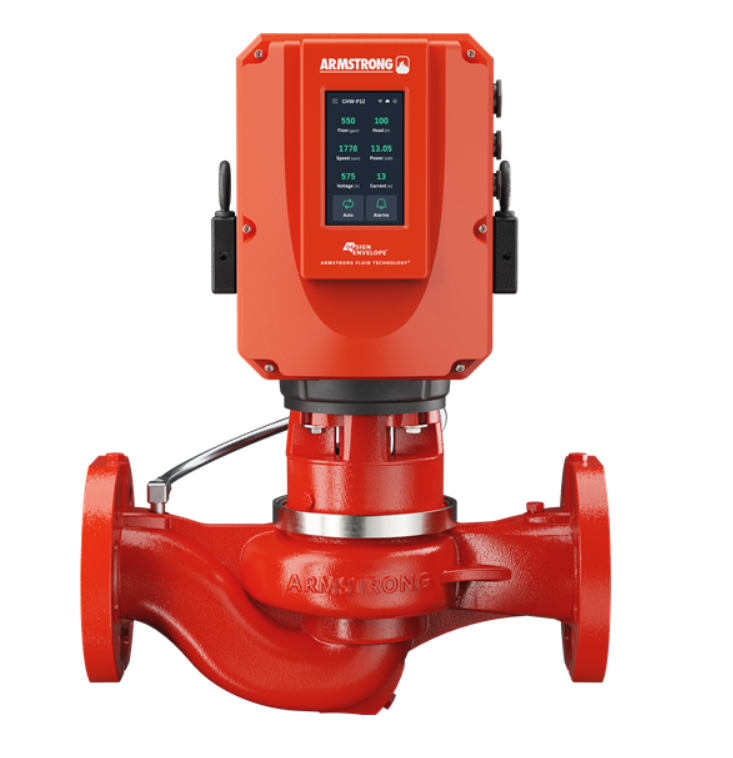

The Armstrong Design Envelope 4380 Series is a highly efficient line of pipe-mounted, vertical in-line intelligent single-pump units featuring integrated smart variable-speed controllers. Delivering a precise performance range of 15 to 450 USgpm and up to 160 feet of head, this compact pump series is designed for 1” to 6” pipe lines. Driven by high-efficiency permanent magnet (DEPM) motors spanning 0.25 hp to 10 hp, the 4380 series reduces energy losses by more than 20% over standard NEMA Premium ratings. With built-in Sensorless Control technology, the pump automatically calculates and matches your building's real-time flow demands without needing external pressure sensors, cutting energy consumption by up to 75%. It is the perfect choice for commercial HVAC setups, secondary chiller loops, and light-to-medium industrial processing across Bangladesh.
The Armstrong Design Envelope 4380 Pump Series is custom-engineered to tackle the space and energy limitations faced by modern commercial and industrial facilities in Bangladesh. Traditional horizontal base-mounted pumps require a significant amount of floor space, requiring thick concrete inertia bases, heavy housekeeping blocks, and flexible structural pipe connectors to minimize vibration. The Armstrong 4380 completely replaces that old configuration. Thanks to its Vertical In-Line (VIL) engineering, the pump installs directly into the pipe grid like a valve. By positioning the electric motor vertically above the pump casing, it saves up to 60% floor space, allowing you to clear out crowded mechanical room layouts.
The mechanical heart of this pump is built for long-term durability. The core casing is cast from high-grade, e-coated ductile iron to provide complete protection against internal scaling and rust. Fluid movement is driven by a precision-balanced stainless steel impeller and sealed with a rugged sintered silicon carbide mechanical seal that handles high-temperature glycol or water mixtures up to 250°F (121°C). When it comes time for routine maintenance or seal tracking, the close-coupled vertical layout allows technicians to service internal components without disconnecting the main pump casing from your facility's water lines, preventing messy system draining and long downtime.
The operational brains of the 4380 series live inside the on-board variable speed drive enclosure. Traditional variable frequency drives (VFDs) require a differential pressure sensor installed deep within the building's piping network to tell the pump when to change speeds. This setup requires extra field wiring, regular calibration, and is prone to sensor failure. Armstrong’s Sensorless Control technology solves this: the onboard microprocessors actively monitor the motor's power consumption and RPM. By comparing these real-time metrics against pre-loaded factory hydraulic performance curves, the pump instantly calculates the exact system flow and head resistance. It then continuously adjusts its motor speed to match the real-time heating or cooling load of the building, providing up to 75% energy savings compared to traditional constant-speed systems.
| Feature / System Module | Technical Specification Details |
| Flow Capacity Range | 15 to 450 USgpm ($1\text{ to }28\text{ L/s}$) |
| Head Discharge Limits | 10 to 160 feet ($3\text{ to }48\text{ m}$) |
| Operational Temperature | Certified safe up to 250°F (121°C) |
| Power Output Spectrum | 0.25 hp to 10 hp ($0.19\text{ kW to }7.5\text{ kW}$) |
| Flange Size Range | 1" to 6" ($25\text{ mm to }150\text{ mm}$ connection lines) |
| Motor Drive Tech | High-Efficiency DEPM Motors (Reduces losses by >20% over NEMA Premium) |
| Control Intelligence | Embedded On-Board Intelligent Sensorless Variable Speed Drive |
| Casing Metallurgy | E-Coated Ductile Iron (High corrosion resistance) |
| Enclosure Options | UL Type 12 (Indoor standard) or UL Type 4X (Outdoor Weatherproof) |
No Concrete Bases Required: The pipe-mounted layout eliminates the need to pour heavy concrete inertia bases, housekeeping pads, and flexible connectors, significantly lowering upfront construction material costs.
Zero Sensor Procurement Fees: Because sensorless logic is embedded right inside the VFD enclosure, you completely avoid the costs of purchasing, wiring, and maintaining physical differential pressure sensors.
Downsized Equipment Selections: Armstrong's design matching software often recommends a smaller motor and pump configuration than traditional safety calculations, saving you upfront equipment costs.
Up to 75% Electricity Reductions: Combining permanent magnet motors with automated speed scaling allows the pump to use only the exact amount of power needed, noticeably dropping your monthly electricity bills.
Less Pipe Friction Loss: Mounting the pump directly in-line shortens necessary pipe pathways inside the mechanical room, reducing fluid friction and saving extra pumping energy.
Direct Carbon Footprint Reduction: A 75% decrease in energy consumption lowers your facility's operational greenhouse gas emissions at an identical ratio, helping you clear green building audits.
Smart Building Connectivity: The integrated controls are network-capable, connecting seamlessly to centralized Building Automation Systems (BAS) or the internet for remote performance tracking and early warnings.
State properties—such as administrative secretariats, public university laboratories, and national data banks—demand high spatial efficiency and reliable equipment performance.
Saves Premium Floor Space: Government facilities often face tight space constraints. Reducing the pump footprint by 60% allows public works departments to maximize usable mechanical room area.
Eases Grid Electrical Surges: The soft-starting capabilities of the integrated DEPM variable-speed controllers eliminate sudden high current spikes upon startup, protecting local grid transformers from voltage drops.
For Bangladesh's export-driven Ready-Made Garment (RMG) complexes, green LEED-certified spinning mills, and commercial real estate developers, minimizing operational utility costs is vital for profitability.
Meets Strict Global Sustainability Audits: International clothing brands prioritize purchasing from green factories. The massive energy reductions provided by the Armstrong 4380 help factories achieve top-tier LEED certification scores.
Less Disruptive Maintenance: The vertical configuration allows technicians to service internal components while the main pump casing stays completely in place, avoiding lengthy production line shutdowns.
Procuring and calibrating an intelligent sensorless variable-speed pumping system requires a highly technical HVAC engineering partner. Bhai Bhai Engineering delivers professional end-to-end support across Bangladesh:
Verified Authentic OEM Imports: We import directly from authorized global Armstrong Fluid Technology networks, supplying 100% brand-new equipment complete with verified factory certificates and clear serial numbers.
Turnkey Hydronic Engineering Support: Our experienced local engineering team manages the complete project layout—from pipe stress analysis and mechanical installation to variable speed calibration and BAS integration.
Transparent Local BDT Project Quotes: Avoid unexpected currency shifts or hidden import fees. We offer transparent commercial quotes in Bangladeshi Taka (BDT) structured for corporate boards or government procurement reviews.
Quick Local Spare Parts Access: We maintain local stocks of original seals, motor components, and replacement modules to protect your business from costly operational downtime.
Optimize your facility's fluid loop efficiency and maximize energy savings with Armstrong intelligent pumping technology. Contact our specialized industrial sales engineering desk in Dhaka today to receive a detailed commercial proposal and technical product data sheets tailored to your project's specific flow requirements.
Corporate Headquarters: Podirdia, Khilbarirtek, Vatara, Dhaka-1212. (Nur-E-Madina Mosjid Complex)
Sales & Project WhatsApp: +8801722039029
Corporate Mailbox: bhaibhaiengineering51@gmail.com
Engineering Portal: bhaibhaiengineering.com
Q1: What is the main difference between the Armstrong 4380 and the Armstrong 4300 series?
Ans: The Armstrong 4380 series is a close-coupled single pump designed for smaller, highly precise applications, managing flows from 15 to 450 USgpm and port sizes up to 6 inches with a 1-10hp motor range. The 4300 series is engineered for massive, larger-scale industrial requirements, handling up to 25,000 USgpm and motor sizes up to 1250 hp using a split-coupling framework.
Q2: How can the pump adjust its speed automatically without a physical sensor in the pipeline?
Ans: It utilizes embedded Sensorless Control technology. The integrated intelligent drive controller continuously tracks the motor’s precise RPM and power consumption. By referencing these real-time values against pre-loaded factory hydraulic performance curves, the pump instantly calculates the exact system flow and head resistance, adjusting its speed automatically without needing any external physical sensors.
Q3: Does this pump require an expensive concrete base for installation?
Ans: No. One of the main financial advantages of the Armstrong 4380 is its Vertical In-Line design. It mounts directly inside your existing pipeline like a valve, completely eliminating the need to design or pour heavy concrete inertia bases or housekeeping pads.
Q4: Can the Armstrong 4380 pump be installed outdoors exposed to rain?
Ans: The standard model comes with a UL Type 12 control enclosure designed for indoor installations. However, if your project layout requires outdoor installation, we can supply the pump with a UL Type 4X weatherproof enclosure to protect the electronics from rain and environmental moisture.
